Aiuto programmazione ESP32

bortolotti80 Probabilmente hai ragione non sono classi ma dichiara delle entità, generate dal sensore?

sono generate dai sensori su homeassistant (nativamente o da integrazioni installate) o da te nel caso metti insieme più sensori e tiri fuori il risultato (es. somma del carico dell'impianto elettrico derivante da più sensori). In questo ultimo caso li definisci nel configuration.yaml di homeassistant

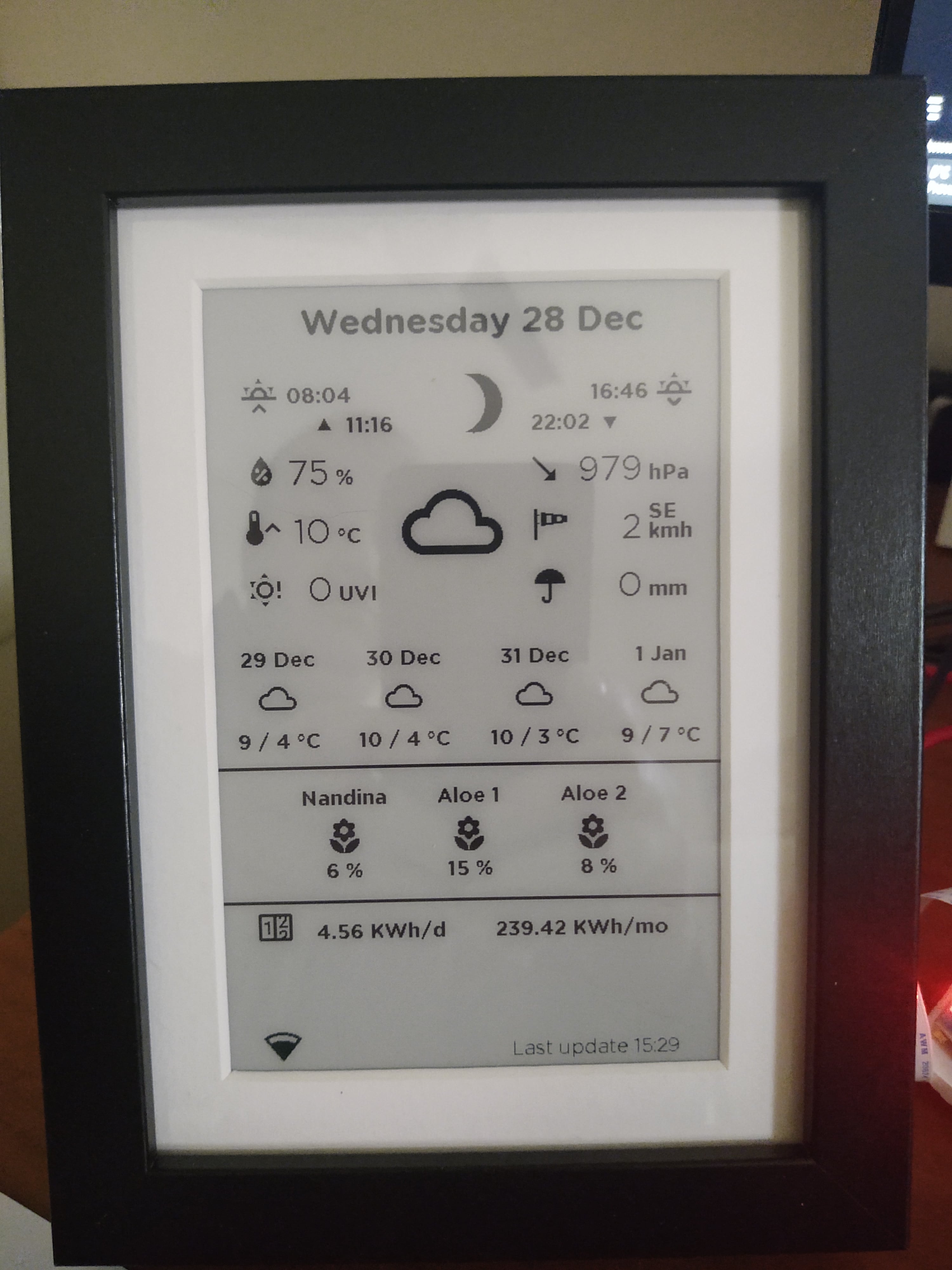

Alla fine sono arrivato a questo punto. Più o meno ci ho fatto stare tutto quel che mi interessava in attesa del fotovoltaico da aggiungere in basso

Nik97teck Questo è il codice che ho flashato sul ESP32. Servono ovviamente un po' di sensori/entità/template da creare lato configuration.yaml di Home Assistant. Eventualmente se serve qualcosa recupero anche quelli.
Per i font/plugin/sorgenti: https://github.com/Madelena/esphome-weatherman-dashboard

esphome:
  name: eink-frame-1

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:

ota:
  password: "XXXX"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Eink-Frame-1 Fallback Hotspot"
    password: "XXXX"

# Include time
time:
  - platform: sntp
    timezone: Europe/Rome
    id: esptime

#Include sun
sun:
  latitude: 45.738760
  longitude: 8.977543

font:
  - file: 'fonts/GothamRnd-Book.ttf'
    id: font_small_book
    size: 18
  - file: 'fonts/GothamRnd-Bold.ttf'
    id: font_large_bold
    size: 108
    glyphs: [' ', '°', '0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'C',]
  - file: 'fonts/GothamRnd-Bold.ttf'
    id: font_time
    size: 90
    glyphs: [' ', '0', '1', '2', '3', '4', '5', '6', '7', '8', '9', ':']
  - file: 'fonts/GothamRnd-Book.ttf'
    id: font_weekday
    size: 30
  - file: 'fonts/GothamRnd-Bold.ttf'
    id: font_weekday_bold
    size: 30
  - file: 'fonts/GothamRnd-Book.ttf'
    id: font_day
    size: 65
    glyphs: [' ', '0', '1', '2', '3', '4', '5', '6', '7', '8', '9']
  - file: 'fonts/GothamRnd-Bold.ttf'
    id: font_month
    size: 40
  - file: 'fonts/GothamRnd-Bold.ttf'
    id: font_medium_bold
    size: 40
    #glyphs: [' ', '0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'M', 'I', 'N']
  - file: 'fonts/GothamRnd-Bold.ttf'
    id: font_small_bold
    size: 18
    # glyphs: ['°', '0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'C', 'M', 'I', 'N']

  - file: 'fonts/materialdesignicons-webfont.ttf'
    id: font_mdi_large
    size: 96
    glyphs: &mdi-weather-glyphs
      - "\U000F029A" # mdi-gauge
      - "\U000F0590" # mdi-weather-cloudy
      - "\U000F0F2F" # mdi-weather-cloudy-alert
      - "\U000F0E6E" # mdi-weather-cloudy-arrow-right
      - "\U000F0591" # mdi-weather-fog
      - "\U000F0592" # mdi-weather-hail
      - "\U000F0F30" # mdi-weather-hazy
      - "\U000F0898" # mdi-weather-hurricane
      - "\U000F0593" # mdi-weather-lightning
      - "\U000F067E" # mdi-weather-lightning-rainy
      - "\U000F0594" # mdi-weather-night
      - "\U000F0F31" # mdi-weather-night-partly-cloudy
      - "\U000F0595" # mdi-weather-partly-cloudy
      - "\U000F0F32" # mdi-weather-partly-lightning
      - "\U000F0F33" # mdi-weather-partly-rainy
      - "\U000F0F34" # mdi-weather-partly-snowy
      - "\U000F0F35" # mdi-weather-partly-snowy-rainy
      - "\U000F0596" # mdi-weather-pouring
      - "\U000F0597" # mdi-weather-rainy
      - "\U000F0598" # mdi-weather-snowy
      - "\U000F0F36" # mdi-weather-snowy-heavy
      - "\U000F067F" # mdi-weather-snowy-rainy
      - "\U000F0599" # mdi-weather-sunny
      - "\U000F0F37" # mdi-weather-sunny-alert
      - "\U000F14E4" # mdi-weather-sunny-off
      - "\U000F059A" # mdi-weather-sunset
      - "\U000F059B" # mdi-weather-sunset-down
      - "\U000F059C" # mdi-weather-sunset-up
      - "\U000F0F38" # mdi-weather-tornado
      - "\U000F059D" # mdi-weather-windy
      - "\U000F059E" # mdi-weather-windy-variant
      - "\U000F058E" # mdi-water-percent
      - "\U000F04C5" # mdi-spedometer
      - "\U000F0F29" # mdi-snowflake-alert
      - "\U000F15FA" # mdi-windsock
      - "\U000F19B3" # mdi-arrow-down-thin
      - "\U000F19B2" # mdi-arrow-up-thin
      - "\U000F19B4" # mdi-arrow-top-right-thin
      - "\U000F19B7" # mdi-arrow-bottom-right-thin
      - "\U000F018C" # mdi-compass-outline
      - "\U000F05A9" # mdi-wifi
      - "\U000F0928" # mdi-wifi-strength-4
      - "\U000F0925" # mdi-wifi-strength-3
      - "\U000F0922" # mdi-wifi-strength-2
      - "\U000F091F" # mdi-wifi-strength-1
      - "\U000F092B" # mdi-wifi-strength-alert-outline
      - "\U000F0079" # mdi-battery
      - "\U000F0082" # mdi-battery-90
      - "\U000F0081" # mdi-battery-80
      - "\U000F0080" # mdi-battery-70
      - "\U000F007F" # mdi-battery-60
      - "\U000F007E" # mdi-battery-50
      - "\U000F007D" # mdi-battery-40
      - "\U000F007C" # mdi-battery-30
      - "\U000F007B" # mdi-battery-20
      - "\U000F007A" # mdi-battery-10
      - "\U000F10CD" # mdi-battery-alert-variant-outline
      - "\U000F0E03" # mdi-thermometer-chevron-up
      - "\U000F0E02" # mdi-thermometer-chevron-down
      - "\U000F1A09" # mdi-triangle-small-down
      - "\U000F1A0A" # mdi-triangle-small-up
      - "\U000F050F" # mdi-thermometer
      - "\U000F054A" # mdi-umbrella
      - "\U000F0510" # mdi-thermometer-lines
      - "\U000F024A" # mdi-flower
      - "\U000F0199" # mdi-counter
      - "\U000F140B" # mdi-lightning-bolt
      - "\U000F008B" # mdi-battery-charging-high
      - "\U000F12A5" # mdi-battery-charging-medium
      - "\U000F12A4" # mdi-battery-charging-low
      - "\U000F089F" # mdi-battery-charging-outline

  - file: 'fonts/materialdesignicons-webfont.ttf'
    id: font_mdi_medlarge
    size: 60
    glyphs:
      - "\U000F058E" # mdi-water-percent
      - "\U000F04C5" # mdi-spedometer
      - "\U000F0F29" # mdi-snowflake-alert
      - "\U000F15FA" # mdi-windsock
      - "\U000F0F61" # mdi-moon-first-quarter
      - "\U000F0F62" # mdi-moon-full
      - "\U000F0F63" # mdi-moon-last-quarter
      - "\U000F0F64" # mdi-moon-new
      - "\U000F0F65" # mdi-moon-waning-crescent
      - "\U000F0F66" # mdi-moon-waning-gibbous
      - "\U000F0F67" # mdi-moon-waxing-crescent
      - "\U000F0F68" # mdi-moon-waxing-gibbous
  - file: 'fonts/materialdesignicons-webfont.ttf'
    id: font_mdi_medium
    size: 36
    glyphs: *mdi-weather-glyphs

# Include Custom Titles
image:
  - file: "images/line.png"
    id: line
    type: BINARY

# Call Weather sensors from HA
sensor:
  # Plants
  - platform: homeassistant
    name: "Nandina"
    entity_id: sensor.nandina_domestica_moisture
    id: nandina_humidity

  - platform: homeassistant
    name: "Aloe 1"
    entity_id: sensor.aloe_vera_1_moisture
    id: aloe_humidity_1

  - platform: homeassistant
    name: "Aloe 2"
    entity_id: sensor.aloe_vera_2_moisture
    id: aloe_humidity_2

  # Temperature
  - platform: homeassistant
    name: "Temperature"
    entity_id: sensor.temperature_3
    id: weather_temperature

  # Humidity
  - platform: homeassistant
    name: "Humidity"
    entity_id: sensor.humidity_2
    id: weather_humidity

  # Air Pressure
  - platform: homeassistant
    name: "Air Pressure"
    entity_id: sensor.pressure_4
    id: weather_pressure

  # Wind Speed
  - platform: homeassistant
    entity_id: weather.home
    attribute: wind_speed
    id: wind_speed

  # Wind Bearing - from Yr.no (built-in HA weather privider)
  - platform: homeassistant
    entity_id: weather.home
    attribute: wind_bearing
    id: wind_bearing

  # UV Index
  - platform: homeassistant
    entity_id: sensor.home_uv_index
    id: uv_index

  # Rain
  - platform: homeassistant
    entity_id: sensor.bulgarograsso_daily_precipitation
    id: rain

  # WiFi Signal
  - platform: wifi_signal
    name: "WiFi Signal Sensor"
    id: wifisignal
    update_interval: 60s

  # Weatherman entities
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_0
    id: weather_temperature_0
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_1
    id: weather_temperature_1
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_2
    id: weather_temperature_2
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_3
    id: weather_temperature_3
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_0
    id: weather_templow_0
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_1
    id: weather_templow_1
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_2
    id: weather_templow_2
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_temperature_3
    id: weather_templow_3

text_sensor:
  # Pressure Trend
  - platform: homeassistant
    entity_id: binary_sensor.atmospheric_pressure
    id: pressure_trend
  # Temp Trend
  - platform: homeassistant
    entity_id: binary_sensor.outside_temperature
    id: temp_trend

  # Daily Power Trend
  - platform: homeassistant
    entity_id: sensor.daily_energy
    id: dailyenergy

  # Monthly Power Trend
  - platform: homeassistant
    entity_id: sensor.monthly_energy
    id: monthlyenergy

  # Sun
  - platform: sun
    name: Sun Next Sunrise
    type: sunrise
    id: sun_sunrise
    format: "%H:%M"

  - platform: sun
    name: Sun Next Sunset
    type: sunset
    id: sun_sunset
    format: "%H:%M"

  # Moon phase
  - platform: homeassistant
    entity_id: sensor.moon_phase
    id: moon_phase

  - platform: homeassistant
    entity_id: sensor.moon_set
    id: moon_set

  - platform: homeassistant
    entity_id: sensor.moon_rise
    id: moon_rise

  # Weatherman entities
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_condition_now
    id: weather_condition_now
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_condition_0
    id: weather_condition_0
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_timestamp_0
    id: weather_timestamp_0
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_condition_1
    id: weather_condition_1
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_timestamp_1
    id: weather_timestamp_1
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_condition_2
    id: weather_condition_2
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_timestamp_2
    id: weather_timestamp_2
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_condition_3
    id: weather_condition_3
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_timestamp_3
    id: weather_timestamp_3

  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_maxlow_0
    id: weather_maxlow_0
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_maxlow_1
    id: weather_maxlow_1
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_maxlow_2
    id: weather_maxlow_2
  - platform: homeassistant
    entity_id: sensor.weatherman_data
    attribute: weather_maxlow_3
    id: weather_maxlow_3

color:
  - id: color_black
    red: 0%
    green: 0%
    blue: 0%
    white: 50%
  - id: color_white
    red: 0%
    green: 0%
    blue: 0%
    white: 0%

# Pins for Waveshare ePaper ESP Board
spi:
  clk_pin: GPIO13
  mosi_pin: GPIO14

 # Now render everything on the ePaper screen.
display:
  - platform: waveshare_epaper
    cs_pin: GPIO15
    dc_pin: GPIO27
    busy_pin: GPIO25
    reset_pin: GPIO26
    model: 7.50inV2
    update_interval: 1200s
    rotation: 90°
    auto_clear_enabled: True
    lambda: |-
      // Map weather states to MDI characters.
      std::map<std::string, std::string> moon_icon_map
        {
          {"first_quarter", "\U000F0F61"},
          {"full_moon", "\U000F0F62"},
          {"last_quarter", "\U000F0F63"},
          {"new_moon", "\U000F0F64"},
          {"waning_crescent", "\U000F0F65"},
          {"waning_gibbous", "\U000F0F66"},
          {"waxing_crescent", "\U000F0F67"},
          {"waxing_gibbous", "\U000F0F68"},
        };
      std::map<std::string, std::string> weather_icon_map
        {
          {"cloudy", "\U000F0590"},
          {"cloudy-alert", "\U000F0F2F"},
          {"cloudy-arrow-right", "\U000F0E6E"},
          {"fog", "\U000F0591"},
          {"hail", "\U000F0592"},
          {"hazy", "\U000F0F30"},
          {"hurricane", "\U000F0898"},
          {"lightning", "\U000F0593"},
          {"lightning-rainy", "\U000F067E"},
          {"night", "\U000F0594"},
          {"night-partly-cloudy", "\U000F0F31"},
          {"partlycloudy", "\U000F0595"},
          {"partly-lightning", "\U000F0F32"},
          {"partly-rainy", "\U000F0F33"},
          {"partly-snowy", "\U000F0F34"},
          {"partly-snowy-rainy", "\U000F0F35"},
          {"pouring", "\U000F0596"},
          {"rainy", "\U000F0597"},
          {"snowy", "\U000F0598"},
          {"snowy-heavy", "\U000F0F36"},
          {"snowy-rainy", "\U000F067F"},
          {"sunny", "\U000F0599"},
          {"sunny-alert", "\U000F0F37"},
          {"sunny-off", "\U000F14E4"},
          {"sunset", "\U000F059A"},
          {"sunset-down", "\U000F059B"},
          {"sunset-up", "\U000F059C"},
          {"tornado", "\U000F0F38"},
          {"windy", "\U000F059D"},
          {"windy-variant", "\U000F059E"},
        };

      // ----------------------------------------------------------------------------------- PRINT DAY, DATE, MONTH
      it.strftime(265, 70, id(font_weekday_bold), TextAlign::TOP_CENTER, "%A %d %b", id(esptime).now());

      // Weather Section ------------------------------------------------------------------- PLACE NAME
      //  it.print(265, 200, id(font_weekday_bold), color_black, TextAlign::TOP_CENTER, "Appiano Gentile");

      // ----------------------------------------------------------------------------------- WEATHER STATE ICON --------------- (110, 358)
        it.printf(245, 205, id(font_mdi_large), color_black, TextAlign::TOP_CENTER, "%s", weather_icon_map[id(weather_condition_now).state.c_str()].c_str());

      // ----------------------------------------------------------------------------------- HUMIDITY
        if(id(weather_humidity).has_state ()) {
            it.printf(100, 222, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F058E");
            it.printf(145, 220, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%s", "%");
            it.printf(140, 220, id(font_weekday), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(weather_humidity).state);
        }

      // ----------------------------------------------------------------------------------- TEMPERATURE
        if(id(temp_trend).has_state ()) {
            if(id(temp_trend).state == "on") {
                it.printf(100, 270, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F0E03");
            } else if(id(temp_trend).state == "off") {
                it.printf(100, 270, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F0E02");
            } else {
                it.printf(100, 270, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F0510");
            }
        }
        if(id(weather_temperature).has_state ()) {
            it.printf(145, 270, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%s", "°C");
            it.printf(140, 270, id(font_weekday), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(weather_temperature).state);
        }

      // ----------------------------------------------------------------------------------- UV INDEX
        if(id(uv_index).has_state ()) {
            it.printf(100, 324, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F0F37");
            it.printf(140, 320, id(font_weekday), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(uv_index).state);
            it.printf(145, 320, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "UVI");
        }

      // ----------------------------------------------------------------------------------- PRESSURE
        if(id(weather_pressure).has_state ()) {
            // pressure trend
            if(id(pressure_trend).state == "on") {
                it.printf(325, 220, id(font_mdi_medium), color_black, TextAlign::BASELINE_CENTER, "\U000F19B4");
            } else if(id(pressure_trend).state == "off") {
                it.printf(325, 222, id(font_mdi_medium), color_black, TextAlign::BASELINE_CENTER, "\U000F19B7");
            } else {
                it.printf(325, 222, id(font_mdi_medium), color_black, TextAlign::BASELINE_CENTER, "\U000F029A");
            }
            it.printf(410, 220, id(font_weekday), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(weather_pressure).state);
            it.printf(415, 220, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "hPa");
        }

      // ----------------------------------------------------------------------------------- WIND
        if(id(wind_speed).has_state ()) {
            it.printf(330, 270, id(font_mdi_medium), color_black, TextAlign::BASELINE_CENTER, "\U000F15FA");
            it.printf(410, 270, id(font_weekday), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(wind_speed).state);
            it.printf(415, 270, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "kmh");
        }

      // ----------------------------------------------------------------------------------- WIND DIRECTION & BEARING
        if(id(wind_bearing).has_state ()) {
            if (id(wind_bearing).state > 337.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "N");
            } else if(id(wind_bearing). state > 292.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "NW");
            } else if(id(wind_bearing). state > 247.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "W");
            } else if(id(wind_bearing). state > 202.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "SW");
            } else if(id(wind_bearing). state > 157.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "S");
            } else if(id(wind_bearing). state > 112.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "SE");
            } else if(id(wind_bearing). state > 67.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "E");
            } else if(id(wind_bearing). state > 22.5) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "NE");
            } else if(id(wind_bearing). state >= 0) {
                it.printf(415, 253, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "N");
            }
        }

      // ----------------------------------------------------------------------------------- RAIN
        if(id(rain).has_state ()) {
            it.printf(330, 324, id(font_mdi_medium), color_black, TextAlign::BASELINE_CENTER, "\U000F054A");
            it.printf(410, 320, id(font_weekday), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(rain).state);
            it.printf(415, 320, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "mm");
        }

      // ----------------------------------------------------------------------------------- Print sunrise
        if(id(sun_sunrise).has_state ()) {
            it.printf(100, 145, id(font_mdi_medium), color_black, TextAlign::CENTER_RIGHT, "\U000F059C");
            it.printf(105, 145, id(font_small_bold), color_black, TextAlign::CENTER_LEFT, "%s", id(sun_sunrise).state.c_str());
        }
      // ----------------------------------------------------------------------------------- Print sunset
        if(id(sun_sunset).has_state ()) {
            it.printf(455, 145, id(font_mdi_medium), color_black, TextAlign::CENTER_RIGHT, "\U000F059B");
            it.printf(415, 145, id(font_small_bold), color_black, TextAlign::CENTER_RIGHT, "%s", id(sun_sunset).state.c_str());
        }

      // ----------------------------------------------------------------------------------- Print moonrise
        if(id(moon_rise).has_state ()) {
            it.printf(155, 170, id(font_mdi_medium), color_black, TextAlign::CENTER_RIGHT, "\U000F1A0A");
            it.printf(155, 170, id(font_small_bold), color_black, TextAlign::CENTER_LEFT, "%s", id(moon_rise).state.c_str());
        }
      // ----------------------------------------------------------------------------------- Print moonset
        if(id(moon_set).has_state ()) {
            it.printf(400, 170, id(font_mdi_medium), color_black, TextAlign::CENTER_RIGHT, "\U000F1A09");
            it.printf(365, 170, id(font_small_bold), color_black, TextAlign::CENTER_RIGHT, "%s", id(moon_set).state.c_str());
        }
      // ----------------------------------------------------------------------------------- MOON PHASE ICON ------------------
        if(id(moon_phase).has_state ()) {
            it.printf(265, 153, id(font_mdi_medlarge), color_black, TextAlign::CENTER, "%s", moon_icon_map[id(moon_phase).state.c_str()].c_str());
        }

      // ----------------------------------------------------------------------------------- WEATHER FORECAST ------------------
        if(id(weather_temperature_0).has_state ()) {
            it.printf(90, 362, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_timestamp_0).state.c_str());
            it.printf(90, 386, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "%s", weather_icon_map[id(weather_condition_0).state.c_str()].c_str());
            it.printf(90, 434, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_maxlow_0).state.c_str());
        }

        if(id(weather_temperature_1).has_state ()) {
            it.printf(200, 362, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_timestamp_1).state.c_str());
            it.printf(200, 386, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "%s", weather_icon_map[id(weather_condition_1).state.c_str()].c_str());
            it.printf(200, 434, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_maxlow_1).state.c_str());
        }

        if(id(weather_temperature_2).has_state ()) {
            it.printf(315, 362, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_timestamp_2).state.c_str());
            it.printf(315, 386, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "%s", weather_icon_map[id(weather_condition_2).state.c_str()].c_str());
            it.printf(315, 434, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_maxlow_2).state.c_str());
        }

        if(id(weather_temperature_3).has_state ()) {
            it.printf(425, 362, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_timestamp_3).state.c_str());
            it.printf(425, 386, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "%s", weather_icon_map[id(weather_condition_3).state.c_str()].c_str());
            it.printf(425, 434, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "%s", id(weather_maxlow_3).state.c_str());
        }

      // ------------------------------------------------------------------- DIVIDER
        it.image(0, 465, id(line));

      // ----------------------------------------------------------------------------------- PLANTS ------------------
        if(id(nandina_humidity).has_state ()) {
            it.print(145, 485, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "Nandina");
            it.printf(145, 510, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F024A");
            it.printf(140, 565, id(font_small_bold), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(nandina_humidity).state);
            it.print(145, 565, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%");

        }
        if(id(aloe_humidity_1).has_state ()) {
            it.print(255, 485, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "Aloe 1");
            it.printf(255, 510, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F024A");
            it.printf(255, 565, id(font_small_bold), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(aloe_humidity_1).state);
            it.print(260, 565, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%");
        }
        if(id(aloe_humidity_2).has_state ()) {
            it.print(365, 485, id(font_small_bold), color_black, TextAlign::TOP_CENTER, "Aloe 2");
            it.printf(365, 510, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F024A");
            it.printf(365, 565, id(font_small_bold), color_black, TextAlign::BASELINE_RIGHT, "%2.0f", id(aloe_humidity_2).state);
            it.print(370, 565, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%");
        }

      // ------------------------------------------------------------------- DIVIDER
        it.image(0, 585, id(line));

      // ----------------------------------------------------------------------------------- ENERGY
        if(id(dailyenergy).has_state ()) {
            it.printf(100, 622, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F0199");
            it.printf(165, 620, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%s", "KWh/d");
            it.printf(160, 620, id(font_small_bold), color_black, TextAlign::BASELINE_RIGHT, "%s", id(dailyenergy).state.c_str());
        }
        if(id(monthlyenergy).has_state ()) {
          //  it.printf(500, 622, id(font_mdi_medium), color_black, TextAlign::BASELINE_RIGHT, "\U000F0199");
            it.printf(345, 620, id(font_small_bold), color_black, TextAlign::BASELINE_LEFT, "%s", "KWh/mo");
            it.printf(340, 620, id(font_small_bold), color_black, TextAlign::BASELINE_RIGHT, "%s", id(monthlyenergy).state.c_str());
        }

      // ----------------------------------------------------------------------------------- LAST UPDATE
      it.printf(395, 730, id(font_small_book), color_black, TextAlign::BASELINE_RIGHT, "%s", "Last update");
      it.strftime(400, 730, id(font_small_book), TextAlign::BASELINE_LEFT, "%H:%M", id(esptime).now());

      // ----------------------------------------------------------------------------------- WiFi
      if(id(wifisignal).has_state ()) {
        if (id(wifisignal).state >= -50) {
            // Excellent # mdi-wifi-strength-4 "\U000F0928" 255, 230
            it.printf(85, 700, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F0928");
        } else if (id(wifisignal).state  >= -60) {
            //Good # mdi-wifi-strength-3 "\U000F0925"
            it.printf(85, 700, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F0925");
        } else if (id(wifisignal).state  >= -67) {
            //Fair # mdi-wifi-strength-2 "\U000F0922"
            it.printf(85, 700, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F0922");
        } else if (id(wifisignal).state  >= -70) {
            //Weak # mdi-wifi-strength-1 "\U000F091F"
            it.printf(85, 700, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F091F");
        } else {
            //Unlikely working signal # mdi-wifi-strength-alert-outline "\U000F092B"
            it.printf(85, 700, id(font_mdi_medium), color_black, TextAlign::TOP_CENTER, "\U000F092B");
        }
      }

captive_portal:
