Cerco utilizzatore PfSense con Dimensione FWA

Ggiorda1971 · 13 mag

Ciao, come da titolo, da quando al 27/03 c'è stato un riavvio improvviso di un BRAS non c'è piu' stato verso di far tirare su la PPpoe con dimensione al mio firewall con PfSense o con OpnSense, con Ipfire funziona. Rifatto il firewall da zero, ora sto con proxmox con virtualizzati Pfsense, OpnSense ed Ipfire, tutti ultime versioni.
Cerco qualcuno che ha il mio stesso software, vorrei capire se sono io diventato vecchio oppure e' cambiato qualcosa nella Cfg.

Grazie a chiunque possa o volgia dedicarmi un po del suo tempo ed aiuto.
Gio

Giann · 13 mag

giorda1971 io ho PFsense su bare metal e non ho notato alcun problema

Ggiorda1971 · 13 mag

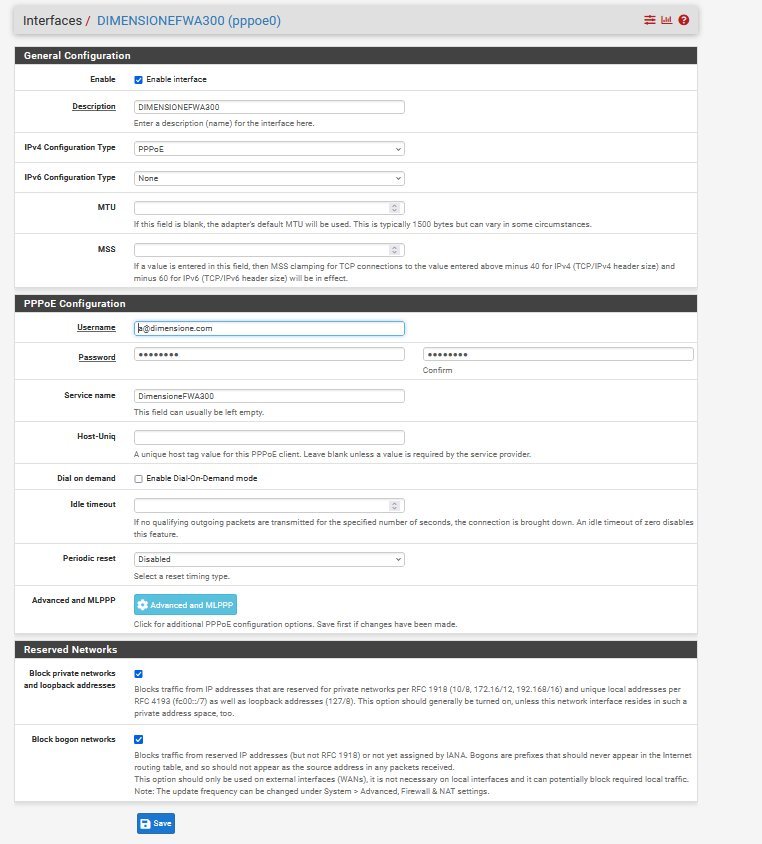

Vuoi condividere con me la Cfg della porta WAN e della PPpoe? (ovviamente senza dati).
Se vuoi la estrapolo dal backup funzionante e la condivido io.

Grazie

DDragonMaz · 13 mag

giorda1971 Se sei su rete EOLO la configurazione è la classica user e password senza VLAN o altro, ma dai log cosa vedi?

Ggiorda1971 · 13 mag

Dimensione ma rete Eolo, si solo username e password.

Riprendo un log che avevo condiviso nel forum di Netgate, ora ho collegato il router di Dimensione e non ho possibilita' di cambio non essendo a casa, e' comunque tutto uguale, ieri sera stesse righe:

Premi per mostrare Premi per nascondere

Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: LayerDown
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: SendTerminateAck #15
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: state change Opened --> Stopping
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: rec'd Terminate Request #1 (Opened)
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: LayerUp
Apr 2 07:39:24 ppp 17356 [wan_link0] PAP: sending REQUEST #1 len: 50
Apr 2 07:39:24 ppp 17356 [wan_link0] PAP: using authname "usernameetcetcetc@dimensione.com"
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: auth: peer wants PAP, I want nothing
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: state change Ack-Rcvd --> Opened
Apr 2 07:39:24 ppp 17356 [wan_link0] PROTOCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] MAGICNUM 0xcb0dcbaa
Apr 2 07:39:24 ppp 17356 [wan_link0] AUTHPROTO PAP
Apr 2 07:39:24 ppp 17356 [wan_link0] ACCMAP 0x000a0000
Apr 2 07:39:24 ppp 17356 [wan_link0] MRU 1492
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: SendConfigAck #2
Apr 2 07:39:24 ppp 17356 [wan_link0] PROTOCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] MAGICNUM 0xcb0dcbaa
Apr 2 07:39:24 ppp 17356 [wan_link0] AUTHPROTO PAP
Apr 2 07:39:24 ppp 17356 [wan_link0] ACCMAP 0x000a0000
Apr 2 07:39:24 ppp 17356 [wan_link0] MRU 1492
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: rec'd Configure Request #2 (Ack-Rcvd)
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: state change Req-Sent --> Ack-Rcvd
Apr 2 07:39:24 ppp 17356 [wan_link0] MAGICNUM 0xc8516bd0
Apr 2 07:39:24 ppp 17356 [wan_link0] MRU 1492
Apr 2 07:39:24 ppp 17356 [wan_link0] PROTOCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: rec'd Configure Ack #14 (Req-Sent)
Apr 2 07:39:24 ppp 17356 [wan_link0] ACFCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: SendConfigRej #1
Apr 2 07:39:24 ppp 17356 [wan_link0] ACFCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] PROTOCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] MAGICNUM 0xcb0dcbaa
Apr 2 07:39:24 ppp 17356 [wan_link0] AUTHPROTO PAP
Apr 2 07:39:24 ppp 17356 [wan_link0] ACCMAP 0x000a0000
Apr 2 07:39:24 ppp 17356 [wan_link0] MRU 1492
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: rec'd Configure Request #1 (Req-Sent)
Apr 2 07:39:24 ppp 17356 [wan_link0] MAGICNUM 0xc8516bd0
Apr 2 07:39:24 ppp 17356 [wan_link0] MRU 1492
Apr 2 07:39:24 ppp 17356 [wan_link0] PROTOCOMP
Apr 2 07:39:24 ppp 17356 [wan_link0] LCP: SendConfigReq #14
Apr 2 07:39:22 ppp 17356 [wan_link0] MAGICNUM 0xc8516bd0
Apr 2 07:39:22 ppp 17356 [wan_link0] MRU 1492
Apr 2 07:39:22 ppp 17356 [wan_link0] PROTOCOMP
Apr 2 07:39:22 ppp 17356 [wan_link0] LCP: SendConfigReq #13
Apr 2 07:39:22 ppp 17356 [wan_link0] LCP: state change Starting --> Req-Sent

!<

Giann · 13 mag

giorda1971 che cosa ti interessa vedere?
Stasera se mi ricordo vedo di recuperare quello che ti serve.

Per curiosità che scheda di rete usi per la WAN? perché a me capitò che con una realtek 1G faceva le bizze ogni tanto sulla WAN, con quella a 2.5G e il suo driver non mi ha mai dato problemi per ora.

Ggiorda1971 · 13 mag

Questo e' il server: [https://www.amazon.it/dp/B0CJC4J5RC?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1]
Era arrivato con PfSense preinstallato, ora ho sopra proxmox e virtualizzato pfsense, prox ha una porta di rete solo sua, pfsense ne usa altre due, cosi se faccio qualche vaccata con Pfsense, raggiungo sempre prox e posso intervenire.

mark129 · 13 mag

giorda1971

Se sei con proxmox, virtualizzaci OpenWRT (VM o LXC) e usa quello come gateway e magari 'sense come firewall.
Comunque la mia domanda stupida è: Pfsense virtualizzato su Proxmox ti ha mai funzionato?

Ggiorda1971 · 13 mag

mark129 Pfsense virtualizzato su Proxmox ti ha mai funzionato?

Ha smesso di funzionare che era sul ferro non virtualizzato, formattato e reinstallato, nisba, ora ho prox e virtualizzato e sono sempre punto ed a capo, da quella notte di marzo pfsense o derivati, mi hanno abbandonato, sia in VM che no.

Ppattagghiu · 13 mag

mark129 virtualizzaci OpenWRT (VM o LXC) e usa quello come gateway e magari 'sense come firewall

o magari anche solo openwrt

V0LDY · 13 mag

Ciao, come da titolo, da quando al 27/03 c'è stato un riavvio improvviso di un BRAS non c'è piu' stato verso di far tirare su la PPpoe con dimensione al mio firewall con PfSense o con OpnSense, con Ipfire

Hmm, sia PFSense che OPNsense sono su base FreeBSD, mentre IPFire è base Linux, non è che è un qualche problema strano di driver?

Rifatto il firewall da zero, ora sto con proxmox con virtualizzati Pfsense, OpnSense ed Ipfire, tutti ultime versioni.

Ma la porta la stai passando direttamente o sei collegato al bridge virtuale di Proxmox? Perché nel primo caso allora resterei dell'idea che sia un qualche problema strano di driver, nel secondo non saprei dare una spiegazione.

Fai comunque un tentativo con OpenWRT, pure lui a base Linux e dovesse funzionare vuol dire che forse il problema è proprio quello.

Ggiorda1971 · 13 mag

V0LDY Ma la porta la stai passando direttamente o sei collegato al bridge virtuale di Proxmox? Perché nel primo caso allora resterei dell'idea che sia un qualche problema strano di driver, nel secondo non saprei dare una spiegazione.

Le passo in bridge:

Vedo se installare OpneWRT, non mi piace proprio.
Ipfire non e' male, ma non ha supporto ipv6 e sinceramente con un ISP che lo usa, rinunciarci mi dispiace. Ora della fine abbandono il ferro e sto su router.

V0LDY · 13 mag

Hmm molto strano che non funzioni con il bridge virtuale, anche se il fatto che ti succeda con i due "sense" e non con la distro Linux comunque mi puzza

Ggiorda1971 · 13 mag

ecco log fresco fresco, pfsense nuovo di pacca, appena rimesso, da webif la solita procedura per configurare la WAN e niente piu:

questo che e'?

May 13 18:18:43 ppp 50101 [wan_link0] LCP: auth: peer wants PAP, I want nothing

sotto un po di dati

Premi per mostrare Premi per nascondere

May 13 18:19:33 ppp 46767 [wan_link0] PAP: sending REQUEST #2 len: 50
May 13 18:19:33 ppp 46767 [wan_link0] PAP: using authname "io@dimensione.com"
May 13 18:19:31 ppp 46767 [wan_link0] LCP: LayerUp
May 13 18:19:31 ppp 46767 [wan_link0] PAP: sending REQUEST #1 len: 50
May 13 18:19:31 ppp 46767 [wan_link0] PAP: using authname "io@dimensione.com"
May 13 18:19:31 ppp 46767 [wan_link0] LCP: auth: peer wants PAP, I want nothing
May 13 18:19:31 ppp 46767 [wan_link0] LCP: state change Ack-Rcvd --> Opened
May 13 18:19:31 ppp 46767 [wan_link0] PROTOCOMP
May 13 18:19:31 ppp 46767 [wan_link0] MAGICNUM 0xa2477db4
May 13 18:19:31 ppp 46767 [wan_link0] AUTHPROTO PAP
May 13 18:19:31 ppp 46767 [wan_link0] ACCMAP 0x000a0000
May 13 18:19:31 ppp 46767 [wan_link0] MRU 1492
May 13 18:19:31 ppp 46767 [wan_link0] LCP: SendConfigAck #2
May 13 18:19:31 ppp 46767 [wan_link0] PROTOCOMP
May 13 18:19:31 ppp 46767 [wan_link0] MAGICNUM 0xa2477db4
May 13 18:19:31 ppp 46767 [wan_link0] AUTHPROTO PAP
May 13 18:19:31 ppp 46767 [wan_link0] ACCMAP 0x000a0000
May 13 18:19:31 ppp 46767 [wan_link0] MRU 1492
May 13 18:19:31 ppp 46767 [wan_link0] LCP: rec'd Configure Request #2 (Ack-Rcvd)
May 13 18:19:31 ppp 46767 [wan_link0] LCP: state change Req-Sent --> Ack-Rcvd
May 13 18:19:31 ppp 46767 [wan_link0] MAGICNUM 0x989bff2c
May 13 18:19:31 ppp 46767 [wan_link0] MRU 1492
May 13 18:19:31 ppp 46767 [wan_link0] PROTOCOMP
May 13 18:19:31 ppp 46767 [wan_link0] LCP: rec'd Configure Ack #2 (Req-Sent)
May 13 18:19:31 ppp 46767 [wan_link0] ACFCOMP
May 13 18:19:31 ppp 46767 [wan_link0] LCP: SendConfigRej #1
May 13 18:19:31 ppp 46767 [wan_link0] ACFCOMP
May 13 18:19:31 ppp 46767 [wan_link0] PROTOCOMP
May 13 18:19:31 ppp 46767 [wan_link0] MAGICNUM 0xa2477db4
May 13 18:19:31 ppp 46767 [wan_link0] AUTHPROTO PAP
May 13 18:19:31 ppp 46767 [wan_link0] ACCMAP 0x000a0000
May 13 18:19:31 ppp 46767 [wan_link0] MRU 1492
May 13 18:19:31 ppp 46767 [wan_link0] LCP: rec'd Configure Request #1 (Req-Sent)
May 13 18:19:31 ppp 46767 [wan_link0] MAGICNUM 0x989bff2c
May 13 18:19:31 ppp 46767 [wan_link0] MRU 1492
May 13 18:19:31 ppp 46767 [wan_link0] PROTOCOMP
May 13 18:19:31 ppp 46767 [wan_link0] LCP: SendConfigReq #2
May 13 18:19:29 ppp 46767 [wan_link0] MAGICNUM 0x989bff2c
May 13 18:19:29 ppp 46767 [wan_link0] MRU 1492
May 13 18:19:29 ppp 46767 [wan_link0] PROTOCOMP
May 13 18:19:29 ppp 46767 [wan_link0] LCP: SendConfigReq #1
May 13 18:19:29 ppp 46767 [wan_link0] LCP: state change Starting --> Req-Sent
May 13 18:19:29 ppp 46767 [wan_link0] LCP: Up event
May 13 18:19:29 ppp 46767 [wan_link0] Link: UP event
May 13 18:19:29 ppp 46767 [wan_link0] PPPoE: connection successful
May 13 18:19:29 ppp 46767 PPPoE: rec'd ACNAME "lac-vpdn"
May 13 18:19:29 ppp 46767 [wan_link0] PPPoE: Connecting to ''
May 13 18:19:29 ppp 46767 [wan_link0] LCP: LayerStart
May 13 18:19:29 ppp 46767 [wan_link0] LCP: state change Initial --> Starting
May 13 18:19:29 ppp 46767 [wan_link0] LCP: Open event
May 13 18:19:29 ppp 46767 [wan_link0] Link: OPEN event
May 13 18:19:29 rtsold 50051 <rtsock_input_ifannounce> interface ng0 removed
May 13 18:19:29 ppp 46767 [wan] Bundle: Interface ng0 created
May 13 18:19:29 ppp 46767 web: web is not running
May 13 18:19:29 ppp 50101 process 50101 terminated
May 13 18:19:29 ppp 50101 [wan_link0] Link: Shutdown
May 13 18:19:29 ppp 50101 [wan] Bundle: Shutdown
May 13 18:19:28 ppp 46767 waiting for process 50101 to die...
May 13 18:19:27 ppp 46767 waiting for process 50101 to die...
May 13 18:19:27 ppp 50101 [wan] IPV6CP: Close event
May 13 18:19:27 ppp 50101 [wan] IPCP: Close event
May 13 18:19:27 ppp 50101 [wan] IFACE: Close event
May 13 18:19:27 ppp 50101 caught fatal signal TERM
May 13 18:19:27 ppp 46767 process 46767 started, version 5.9
May 13 18:19:27 ppp 46767 Multi-link PPP daemon for FreeBSD
May 13 18:19:25 ppp 50101 [wan_link0] Link: reconnection attempt 522 in 4 seconds
May 13 18:19:25 ppp 50101 [wan_link0] LCP: LayerStart
May 13 18:19:25 ppp 50101 [wan_link0] LCP: state change Stopped --> Starting
May 13 18:19:25 ppp 50101 [wan_link0] LCP: Down event
May 13 18:19:25 ppp 50101 [wan_link0] Link: DOWN event
May 13 18:19:25 ppp 50101 [wan_link0] PPPoE: connection closed
May 13 18:19:25 ppp 50101 [wan_link0] LCP: LayerFinish
May 13 18:19:25 ppp 50101 [wan_link0] LCP: state change Stopping --> Stopped
May 13 18:19:23 ppp 50101 [wan_link0] LCP: LayerDown
May 13 18:19:23 ppp 50101 [wan_link0] LCP: SendTerminateAck #11
May 13 18:19:23 ppp 50101 [wan_link0] LCP: state change Opened --> Stopping
May 13 18:19:23 ppp 50101 [wan_link0] LCP: rec'd Terminate Request #1 (Opened)
May 13 18:19:23 ppp 50101 [wan_link0] LCP: LayerUp
May 13 18:19:23 ppp 50101 [wan_link0] PAP: sending REQUEST #1 len: 50
May 13 18:19:23 ppp 50101 [wan_link0] PAP: using authname "io@dimensione.com"
May 13 18:19:23 ppp 50101 [wan_link0] LCP: auth: peer wants PAP, I want nothing
May 13 18:19:23 ppp 50101 [wan_link0] LCP: state change Ack-Rcvd --> Opened
May 13 18:19:23 ppp 50101 [wan_link0] PROTOCOMP
May 13 18:19:23 ppp 50101 [wan_link0] MAGICNUM 0xa2475de0
May 13 18:19:23 ppp 50101 [wan_link0] AUTHPROTO PAP
May 13 18:19:23 ppp 50101 [wan_link0] ACCMAP 0x000a0000
May 13 18:19:23 ppp 50101 [wan_link0] MRU 1492
May 13 18:19:23 ppp 50101 [wan_link0] LCP: SendConfigAck #2
May 13 18:19:23 ppp 50101 [wan_link0] PROTOCOMP
May 13 18:19:23 ppp 50101 [wan_link0] MAGICNUM 0xa2475de0
May 13 18:19:23 ppp 50101 [wan_link0] AUTHPROTO PAP
May 13 18:19:23 ppp 50101 [wan_link0] ACCMAP 0x000a0000
May 13 18:19:23 ppp 50101 [wan_link0] MRU 1492
May 13 18:19:23 ppp 50101 [wan_link0] LCP: rec'd Configure Request #2 (Ack-Rcvd)
May 13 18:19:23 ppp 50101 [wan_link0] LCP: state change Req-Sent --> Ack-Rcvd
May 13 18:19:23 ppp 50101 [wan_link0] MAGICNUM 0xd650190b
May 13 18:19:23 ppp 50101 [wan_link0] MRU 1492
May 13 18:19:23 ppp 50101 [wan_link0] PROTOCOMP
May 13 18:19:23 ppp 50101 [wan_link0] LCP: rec'd Configure Ack #10 (Req-Sent)
May 13 18:19:23 ppp 50101 [wan_link0] ACFCOMP
May 13 18:19:23 ppp 50101 [wan_link0] LCP: SendConfigRej #1
May 13 18:19:23 ppp 50101 [wan_link0] ACFCOMP
May 13 18:19:23 ppp 50101 [wan_link0] PROTOCOMP
May 13 18:19:23 ppp 50101 [wan_link0] MAGICNUM 0xa2475de0
May 13 18:19:23 ppp 50101 [wan_link0] AUTHPROTO PAP
May 13 18:19:23 ppp 50101 [wan_link0] ACCMAP 0x000a0000
May 13 18:19:23 ppp 50101 [wan_link0] MRU 1492
May 13 18:19:23 ppp 50101 [wan_link0] LCP: rec'd Configure Request #1 (Req-Sent)
May 13 18:19:23 ppp 50101 [wan_link0] MAGICNUM 0xd650190b
May 13 18:19:23 ppp 50101 [wan_link0] MRU 1492
May 13 18:19:23 ppp 50101 [wan_link0] PROTOCOMP
May 13 18:19:23 ppp 50101 [wan_link0] LCP: SendConfigReq #10
May 13 18:19:21 ppp 50101 [wan_link0] MAGICNUM 0xd650190b
May 13 18:19:21 ppp 50101 [wan_link0] MRU 1492
May 13 18:19:21 ppp 50101 [wan_link0] PROTOCOMP
May 13 18:19:21 ppp 50101 [wan_link0] LCP: SendConfigReq #9
May 13 18:19:21 ppp 50101 [wan_link0] LCP: state change Starting --> Req-Sent
May 13 18:19:21 ppp 50101 [wan_link0] LCP: Up event
May 13 18:19:21 ppp 50101 [wan_link0] Link: UP event
May 13 18:19:21 ppp 50101 [wan_link0] PPPoE: connection successful
May 13 18:19:21 ppp 50101 PPPoE: rec'd ACNAME "lac-vpdn"
May 13 18:19:21 ppp 50101 [wan_link0] PPPoE: Connecting to ''
May 13 18:19:21 ppp 50101 [wan_link0] Link: reconnection attempt 521
May 13 18:19:20 ppp 50101 [wan_link0] Link: reconnection attempt 521 in 1 seconds
May 13 18:19:20 ppp 50101 [wan_link0] LCP: LayerDown
May 13 18:19:20 ppp 50101 [wan_link0] LCP: state change Opened --> Starting
May 13 18:19:20 ppp 50101 [wan_link0] LCP: Down event
May 13 18:19:20 ppp 50101 [wan_link0] Link: DOWN event
May 13 18:19:20 ppp 50101 [wan_link0] PPPoE: connection closed
May 13 18:18:51 ppp 50101 [wan_link0] PAP: sending REQUEST #5 len: 50
May 13 18:18:51 ppp 50101 [wan_link0] PAP: using authname "io@dimensione.com" !<

Ggiorda1971 · 14 mag

Aggiornato PfSense alla 2.8 beta, nulla da fare. Ci rinuncio.

Giann · 14 mag

giorda1971 Non so se hai omesso qualcosa, ma sembra che non gli torna indietro l'autorizzazione per la PPPoE ti lascio un esempio mio:

Premi per mostrare Premi per nascondere

May 10 17:41:41 	ppp 	18566 	caught fatal signal TERM
May 10 17:41:41 	ppp 	18566 	[wan] IFACE: Close event
May 10 17:41:41 	ppp 	18566 	[wan] IPCP: Close event
May 10 17:41:41 	ppp 	18566 	[wan] IPCP: state change Opened --> Closing
May 10 17:41:41 	ppp 	18566 	[wan] IPCP: SendTerminateReq #4
May 10 17:41:41 	ppp 	18566 	[wan] error writing len 8 frame to b0: Network is down
May 10 17:41:41 	ppp 	18566 	[wan] IPCP: LayerDown
May 10 17:41:42 	ppp 	18566 	[wan] IFACE: Removing IPv4 address from pppoe0 failed(IGNORING for now. This should be only for PPPoE friendly!): Can't assign requested address
May 10 17:41:42 	ppp 	18566 	[wan] IFACE: Down event
May 10 17:41:42 	ppp 	18566 	[wan] IFACE: Rename interface pppoe0 to pppoe0
May 10 17:41:42 	ppp 	18566 	[wan] IFACE: Set description "DIMENSIONEFWA300"
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: SendTerminateReq #5
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: rec'd Terminate Ack #5 (Closing)
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: state change Closing --> Closed
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: LayerFinish
May 10 17:41:43 	ppp 	18566 	[wan] Bundle: No NCPs left. Closing links...
May 10 17:41:43 	ppp 	18566 	[wan] Bundle: closing link "wan_link0"...
May 10 17:41:43 	ppp 	18566 	[wan_link0] Link: CLOSE event
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: Close event
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: state change Opened --> Closing
May 10 17:41:43 	ppp 	18566 	[wan_link0] Link: Leave bundle "wan"
May 10 17:41:43 	ppp 	18566 	[wan] Bundle: Status update: up 0 links, total bandwidth 9600 bps
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: Close event
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: Down event
May 10 17:41:43 	ppp 	18566 	[wan] IPCP: state change Closed --> Initial
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: SendTerminateReq #4
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: LayerDown
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: rec'd Terminate Ack #4 (Closing)
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: state change Closing --> Closed
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: LayerFinish
May 10 17:41:43 	ppp 	18566 	[wan_link0] Link: DOWN event
May 10 17:41:43 	ppp 	18566 	[wan_link0] Link: giving up after 0 reconnection attempts
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: Close event
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: Down event
May 10 17:41:43 	ppp 	18566 	[wan_link0] LCP: state change Closed --> Initial
May 10 17:41:44 	ppp 	18566 	[wan] Bundle: Shutdown
May 10 17:41:44 	ppp 	18566 	[wan_link0] Link: Shutdown
May 10 17:41:44 	ppp 	18566 	process 18566 terminated
May 10 17:41:44 	ppp 	7373 	Multi-link PPP daemon for FreeBSD
May 10 17:41:44 	ppp 	7373 	process 7373 started, version 5.9
May 10 17:41:44 	ppp 	7373 	web: web is not running
May 10 17:41:44 	ppp 	7373 	[wan] Bundle: Interface ng0 created
May 10 17:41:44 	ppp 	7373 	[wan_link0] Link: OPEN event
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: Open event
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: state change Initial --> Starting
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: LayerStart
May 10 17:41:44 	ppp 	7373 	[wan_link0] PPPoE: Connecting to 'DimensioneFWA300'
May 10 17:41:44 	ppp 	7373 	PPPoE: rec'd ACNAME "epizzb1"
May 10 17:41:44 	ppp 	7373 	[wan_link0] PPPoE: connection successful
May 10 17:41:44 	ppp 	7373 	[wan_link0] Link: UP event
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: Up event
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: state change Starting --> Req-Sent
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: SendConfigReq #1
May 10 17:41:44 	ppp 	7373 	[wan_link0] PROTOCOMP
May 10 17:41:44 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:44 	ppp 	7373 	[wan_link0] MAGICNUM 0x8e29ca87
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: rec'd Configure Request #1 (Req-Sent)
May 10 17:41:44 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:44 	ppp 	7373 	[wan_link0] MAGICNUM 0xe7ce4089
May 10 17:41:44 	ppp 	7373 	[wan_link0] AUTHPROTO CHAP MD5
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: SendConfigAck #1
May 10 17:41:44 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:44 	ppp 	7373 	[wan_link0] MAGICNUM 0xe7ce4089
May 10 17:41:44 	ppp 	7373 	[wan_link0] AUTHPROTO CHAP MD5
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: state change Req-Sent --> Ack-Sent
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: rec'd Configure Reject #1 (Ack-Sent)
May 10 17:41:44 	ppp 	7373 	[wan_link0] PROTOCOMP
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: SendConfigReq #2
May 10 17:41:44 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:44 	ppp 	7373 	[wan_link0] MAGICNUM 0x8e29ca87
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: rec'd Configure Ack #2 (Ack-Sent)
May 10 17:41:44 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:44 	ppp 	7373 	[wan_link0] MAGICNUM 0x8e29ca87
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: state change Ack-Sent --> Opened
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: auth: peer wants CHAP, I want nothing
May 10 17:41:44 	ppp 	7373 	[wan_link0] LCP: LayerUp
May 10 17:41:44 	ppp 	7373 	[wan_link0] CHAP: rec'd CHALLENGE #1 len: 27
May 10 17:41:44 	ppp 	7373 	[wan_link0] Name: ""
May 10 17:41:44 	ppp 	7373 	[wan_link0] CHAP: Using authname "IO@dimensione.com"
May 10 17:41:44 	ppp 	7373 	[wan_link0] CHAP: sending RESPONSE #1 len: 57
May 10 17:41:46 	ppp 	7373 	[wan_link0] CHAP: sending RESPONSE #1 len: 57
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: rec'd Configure Request #1 (Opened)
May 10 17:41:46 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:46 	ppp 	7373 	[wan_link0] AUTHPROTO PAP
May 10 17:41:46 	ppp 	7373 	[wan_link0] MAGICNUM 0x92a1f6a2
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: LayerDown
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: SendConfigReq #3
May 10 17:41:46 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:46 	ppp 	7373 	[wan_link0] MAGICNUM 0x8e29ca87
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: SendConfigAck #1
May 10 17:41:46 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:46 	ppp 	7373 	[wan_link0] AUTHPROTO PAP
May 10 17:41:46 	ppp 	7373 	[wan_link0] MAGICNUM 0x92a1f6a2
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: state change Opened --> Ack-Sent
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: rec'd Configure Ack #3 (Ack-Sent)
May 10 17:41:46 	ppp 	7373 	[wan_link0] MRU 1492
May 10 17:41:46 	ppp 	7373 	[wan_link0] MAGICNUM 0x8e29ca87
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: state change Ack-Sent --> Opened
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: auth: peer wants PAP, I want nothing
May 10 17:41:46 	ppp 	7373 	[wan_link0] PAP: using authname "IO@dimensione.com"
May 10 17:41:46 	ppp 	7373 	[wan_link0] PAP: sending REQUEST #1 len: 50
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: LayerUp
May 10 17:41:46 	ppp 	7373 	[wan_link0] PAP: rec'd ACK #1 len: 36
May 10 17:41:46 	ppp 	7373 	[wan_link0] MESG: Authentication success,Welcome!
May 10 17:41:46 	ppp 	7373 	[wan_link0] LCP: authorization successful
May 10 17:41:46 	ppp 	7373 	[wan_link0] Link: Matched action 'bundle "wan" ""'
May 10 17:41:46 	ppp 	7373 	[wan_link0] Link: Join bundle "wan"
May 10 17:41:46 	ppp 	7373 	[wan] Bundle: Status update: up 1 link, total bandwidth 64000 bps
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: Open event
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: state change Initial --> Starting
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: LayerStart
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: Up event
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: state change Starting --> Req-Sent
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: SendConfigReq #1
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 0.0.0.0
May 10 17:41:46 	ppp 	7373 	[wan] COMPPROTO VJCOMP, 16 comp. channels, no comp-cid
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: rec'd Configure Request #1 (Req-Sent)
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 100.64.255.254
May 10 17:41:46 	ppp 	7373 	[wan] 100.64.255.254 is OK
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: SendConfigAck #1
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 100.64.255.254
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: state change Req-Sent --> Ack-Sent
May 10 17:41:46 	ppp 	7373 	[wan_link0] rec'd unexpected protocol IPV6CP, rejecting
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: rec'd Configure Reject #1 (Ack-Sent)
May 10 17:41:46 	ppp 	7373 	[wan] COMPPROTO VJCOMP, 16 comp. channels, no comp-cid
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: SendConfigReq #2
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 0.0.0.0
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: rec'd Configure Nak #2 (Ack-Sent)
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 195.32.X.X.
May 10 17:41:46 	ppp 	7373 	[wan] 195.32.X.X. is OK
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: SendConfigReq #3
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 195.32.X.X.
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: rec'd Configure Ack #3 (Ack-Sent)
May 10 17:41:46 	ppp 	7373 	[wan] IPADDR 195.32.X.X.
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: state change Ack-Sent --> Opened
May 10 17:41:46 	ppp 	7373 	[wan] IPCP: LayerUp
May 10 17:41:46 	ppp 	7373 	[wan] 195.32.X.X. -> 100.64.255.254
May 10 17:41:47 	ppp 	7373 	[wan] IFACE: Up event
May 10 17:41:47 	ppp 	7373 	[wan] IFACE: Rename interface ng0 to pppoe0
May 10 17:41:47 	ppp 	7373 	[wan] IFACE: Add description "DIMENSIONEFWA300"
``` !<

Poi io non sono per niente esperto di queste cose, vedo solo che io ho il prompt ppp 7373 [wan_link0] LCP: authorization successful che nel tuo log non vedo, anche se dice di aver avuto con successo una connessione.

Questa è la configurazione per la PPPoE

Ggiorda1971 · 15 mag

Giann Ciao, ti RINGRAZIO, sei stato molto gentile, la config e' uguale, non c'è molto da settare.
Vedo delle differenze tra il tuo log ed il mio, ora li salvo e li analizzo, io ho PAP e tu hai CHAP (a memoria), questa la prima cosa che noto.

Gio

mark129 · 15 mag

giorda1971 Aggiornato PfSense alla 2.8 beta, nulla da fare. Ci rinuncio.

L'assistenza Dimensione non può esserti d'aiuto? Neanche taggare giusgius?

Ggiorda1971 · 15 mag

mark129 sinceramente non li vorrei disturbare, ora provo a capire questa differenza, analizzando i log di ipfire che funziona, mio pf e pf di Giann, vediamo se ne arrivo ad una, come ultima mi tengo una telefonata piu' che un tag qui, gia a marzo giusgius mi aveva detto di passare dal reparto tecnico.

Grazie

mark129 · 15 mag

giorda1971 gia a marzo giusgius mi aveva detto di passare dal reparto tecnico

Eh, fai tu...
