Buonasera a tutti, ho un problema e mi rivolgo a voi più esperti di me.
FIno a poco tempo fa avevo un TIM Hub Executive in modalità bridge in testa al mio pfSense. pfSense si collegava con indirizzo ip statico, quindi doppio nat.

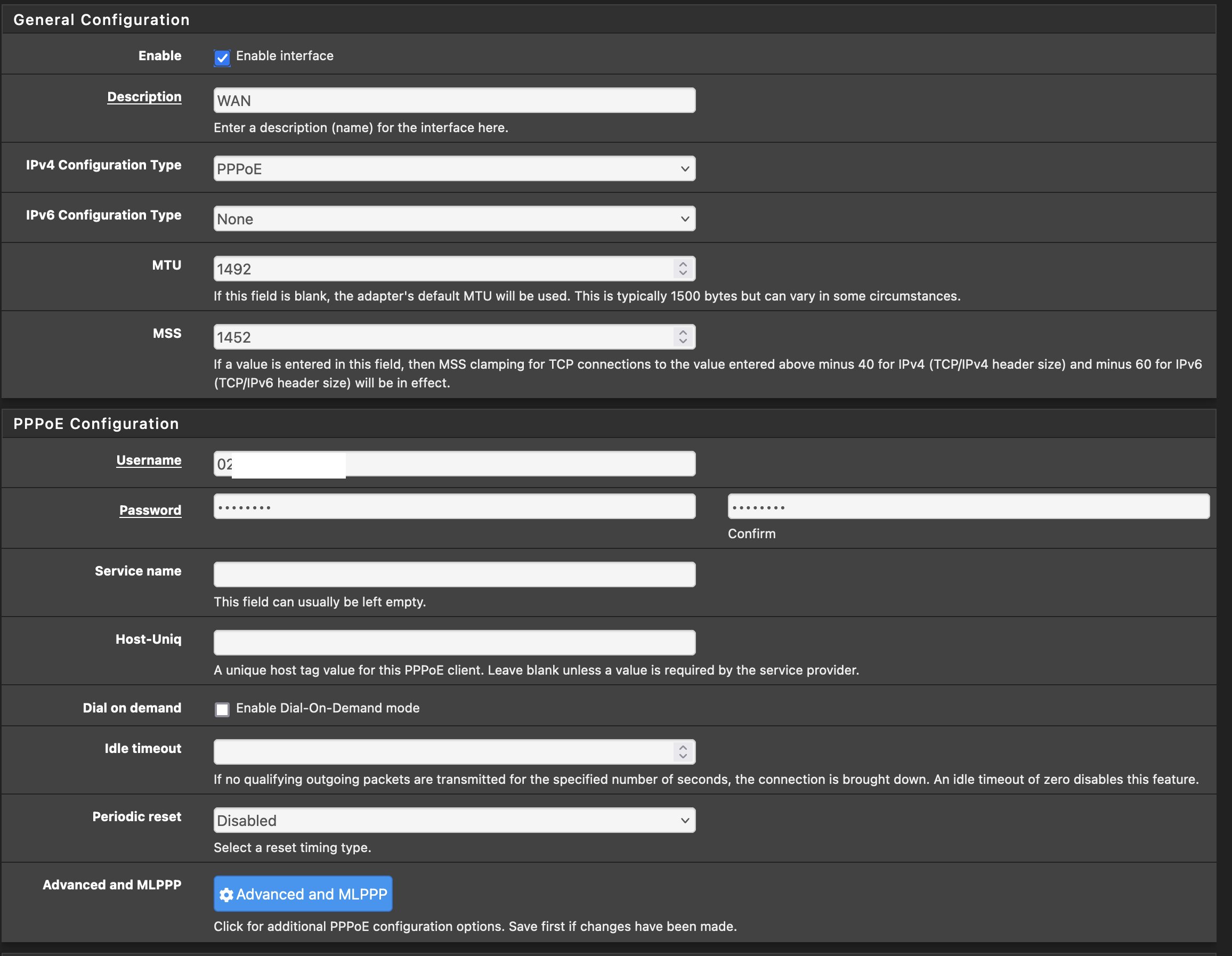

Da quando ho richiesto l'ONT esterno (e ho rimosso il TIM Hub), ho configurato pfSense per collegarsi via PPPoE su VLAN 835, randomicamente ottengo dei timeout e l'unica soluzione sembra essere il reboot del firewall. La configurazione penso sia corretta, la posto qui sotto giusto per reference:
Il log della connsessione di seguito.
Failure case:
<30>1 2024-08-26T09:21:52.289096+02:00 router.home.arpa ppp 72113 - - process 72113 started, version 5.9
<30>1 2024-08-26T09:21:52.291726+02:00 router.home.arpa ppp 72113 - - web: web is not running
<30>1 2024-08-26T09:21:52.292541+02:00 router.home.arpa ppp 72113 - - [wan] Bundle: Interface ng0 created
<30>1 2024-08-26T09:21:52.293394+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: OPEN event
<30>1 2024-08-26T09:21:52.293435+02:00 router.home.arpa ppp 72113 - - [wan_link0] LCP: Open event
<30>1 2024-08-26T09:21:52.293461+02:00 router.home.arpa ppp 72113 - - [wan_link0] LCP: state change Initial --> Starting
<30>1 2024-08-26T09:21:52.293493+02:00 router.home.arpa ppp 72113 - - [wan_link0] LCP: LayerStart
<30>1 2024-08-26T09:21:52.294761+02:00 router.home.arpa ppp 72113 - - [wan_link0] PPPoE: Connecting to ''
<30>1 2024-08-26T09:22:01.294856+02:00 router.home.arpa ppp 72113 - - [wan_link0] PPPoE connection timeout after 9 seconds
<30>1 2024-08-26T09:22:01.294957+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: DOWN event
<30>1 2024-08-26T09:22:01.295015+02:00 router.home.arpa ppp 72113 - - [wan_link0] LCP: Down event
<30>1 2024-08-26T09:22:01.295040+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: reconnection attempt 1 in 1 seconds
<30>1 2024-08-26T09:22:02.295598+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: reconnection attempt 1
<30>1 2024-08-26T09:22:02.295771+02:00 router.home.arpa ppp 72113 - - [wan_link0] PPPoE: Connecting to ''
<30>1 2024-08-26T09:22:11.297595+02:00 router.home.arpa ppp 72113 - - [wan_link0] PPPoE connection timeout after 9 seconds
<30>1 2024-08-26T09:22:11.297689+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: DOWN event
<30>1 2024-08-26T09:22:11.297735+02:00 router.home.arpa ppp 72113 - - [wan_link0] LCP: Down event
<30>1 2024-08-26T09:22:11.297760+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: reconnection attempt 2 in 2 seconds
<30>1 2024-08-26T09:22:13.298533+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: reconnection attempt 2
<30>1 2024-08-26T09:22:13.298706+02:00 router.home.arpa ppp 72113 - - [wan_link0] PPPoE: Connecting to ''
<30>1 2024-08-26T09:22:14.350607+02:00 router.home.arpa ppp 72113 - - caught fatal signal TERM
<30>1 2024-08-26T09:22:14.350697+02:00 router.home.arpa ppp 72113 - - [wan] IFACE: Close event
<30>1 2024-08-26T09:22:14.350725+02:00 router.home.arpa ppp 72113 - - [wan] IPCP: Close event
<30>1 2024-08-26T09:22:16.352536+02:00 router.home.arpa ppp 72113 - - [wan] Bundle: Shutdown
<30>1 2024-08-26T09:22:16.357649+02:00 router.home.arpa ppp 72113 - - [wan_link0] Link: Shutdown
<30>1 2024-08-26T09:22:16.358006+02:00 router.home.arpa ppp 72113 - - process 72113 terminated
<30>1 2024-08-26T09:22:18.300764+02:00 router.home.arpa ppp 17798 - - Multi-link PPP daemon for FreeBSD
Caso successful:
<30>1 2024-08-26T09:24:20.440040+02:00 router.home.arpa ppp 222 - - process 222 started, version 5.9
<30>1 2024-08-26T09:24:20.443698+02:00 router.home.arpa ppp 222 - - web: web is not running
<30>1 2024-08-26T09:24:20.444715+02:00 router.home.arpa ppp 222 - - [wan] Bundle: Interface ng0 created
<30>1 2024-08-26T09:24:20.445703+02:00 router.home.arpa ppp 222 - - [wan_link0] Link: OPEN event
<30>1 2024-08-26T09:24:20.445753+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: Open event
<30>1 2024-08-26T09:24:20.445787+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: state change Initial --> Starting
<30>1 2024-08-26T09:24:20.445821+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: LayerStart
<30>1 2024-08-26T09:24:20.447422+02:00 router.home.arpa ppp 222 - - [wan_link0] PPPoE: Connecting to ''
<30>1 2024-08-26T09:24:20.523714+02:00 router.home.arpa ppp 222 - - PPPoE: rec'd ACNAME "r-mi506"
<30>1 2024-08-26T09:24:20.537247+02:00 router.home.arpa ppp 222 - - [wan_link0] PPPoE: connection successful
<30>1 2024-08-26T09:24:20.537293+02:00 router.home.arpa ppp 222 - - [wan_link0] Link: UP event
<30>1 2024-08-26T09:24:20.537328+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: Up event
<30>1 2024-08-26T09:24:20.537377+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: state change Starting --> Req-Sent
<30>1 2024-08-26T09:24:20.537412+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: SendConfigReq #1
<30>1 2024-08-26T09:24:20.537447+02:00 router.home.arpa ppp 222 - - [wan_link0] PROTOCOMP
<30>1 2024-08-26T09:24:20.537479+02:00 router.home.arpa ppp 222 - - [wan_link0] MRU 1492
<30>1 2024-08-26T09:24:20.537511+02:00 router.home.arpa ppp 222 - - [wan_link0] MAGICNUM 0x43222ba4
<30>1 2024-08-26T09:24:20.542953+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: rec'd Configure Request #93 (Req-Sent)
<30>1 2024-08-26T09:24:20.542996+02:00 router.home.arpa ppp 222 - - [wan_link0] MRU 1492
<30>1 2024-08-26T09:24:20.543031+02:00 router.home.arpa ppp 222 - - [wan_link0] AUTHPROTO PAP
<30>1 2024-08-26T09:24:20.543064+02:00 router.home.arpa ppp 222 - - [wan_link0] MAGICNUM 0x7d225605
<30>1 2024-08-26T09:24:20.543097+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: SendConfigAck #93
<30>1 2024-08-26T09:24:20.543131+02:00 router.home.arpa ppp 222 - - [wan_link0] MRU 1492
<30>1 2024-08-26T09:24:20.543164+02:00 router.home.arpa ppp 222 - - [wan_link0] AUTHPROTO PAP
<30>1 2024-08-26T09:24:20.543196+02:00 router.home.arpa ppp 222 - - [wan_link0] MAGICNUM 0x7d225605
<30>1 2024-08-26T09:24:20.543252+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: state change Req-Sent --> Ack-Sent
<30>1 2024-08-26T09:24:20.543307+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: rec'd Configure Ack #1 (Ack-Sent)
<30>1 2024-08-26T09:24:20.543341+02:00 router.home.arpa ppp 222 - - [wan_link0] PROTOCOMP
<30>1 2024-08-26T09:24:20.543374+02:00 router.home.arpa ppp 222 - - [wan_link0] MRU 1492
<30>1 2024-08-26T09:24:20.543407+02:00 router.home.arpa ppp 222 - - [wan_link0] MAGICNUM 0x43222ba4
<30>1 2024-08-26T09:24:20.543440+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: state change Ack-Sent --> Opened
<30>1 2024-08-26T09:24:20.543499+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: auth: peer wants PAP, I want nothing
<30>1 2024-08-26T09:24:20.543550+02:00 router.home.arpa ppp 222 - - [wan_link0] PAP: using authname "XXXXXXXXXX"
<30>1 2024-08-26T09:24:20.543594+02:00 router.home.arpa ppp 222 - - [wan_link0] PAP: sending REQUEST #1 len: 23
<30>1 2024-08-26T09:24:20.543656+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: LayerUp
<30>1 2024-08-26T09:24:20.687079+02:00 router.home.arpa ppp 222 - - [wan_link0] PAP: rec'd ACK #1 len: 5
<30>1 2024-08-26T09:24:20.687256+02:00 router.home.arpa ppp 222 - - [wan_link0] LCP: authorization successful
<30>1 2024-08-26T09:24:20.687299+02:00 router.home.arpa ppp 222 - - [wan_link0] Link: Matched action 'bundle "wan" ""'
<30>1 2024-08-26T09:24:20.687333+02:00 router.home.arpa ppp 222 - - [wan_link0] Link: Join bundle "wan"
<30>1 2024-08-26T09:24:20.687554+02:00 router.home.arpa ppp 222 - - [wan] Bundle: Status update: up 1 link, total bandwidth 64000 bps
<30>1 2024-08-26T09:24:20.687650+02:00 router.home.arpa ppp 222 - - [wan] IPCP: Open event
<30>1 2024-08-26T09:24:20.687687+02:00 router.home.arpa ppp 222 - - [wan] IPCP: state change Initial --> Starting
<30>1 2024-08-26T09:24:20.687719+02:00 router.home.arpa ppp 222 - - [wan] IPCP: LayerStart
<30>1 2024-08-26T09:24:20.687750+02:00 router.home.arpa ppp 222 - - [wan] IPCP: Up event
<30>1 2024-08-26T09:24:20.687783+02:00 router.home.arpa ppp 222 - - [wan] IPCP: state change Starting --> Req-Sent
<30>1 2024-08-26T09:24:20.687814+02:00 router.home.arpa ppp 222 - - [wan] IPCP: SendConfigReq #1
<30>1 2024-08-26T09:24:20.687889+02:00 router.home.arpa ppp 222 - - [wan] IPADDR 0.0.0.0
<30>1 2024-08-26T09:24:20.687935+02:00 router.home.arpa ppp 222 - - [wan] COMPPROTO VJCOMP, 16 comp. channels, no comp-cid
<30>1 2024-08-26T09:24:20.694302+02:00 router.home.arpa ppp 222 - - [wan] IPCP: rec'd Configure Request #194 (Req-Sent)
<30>1 2024-08-26T09:24:20.694345+02:00 router.home.arpa ppp 222 - - [wan] IPADDR 192.168.100.1
<30>1 2024-08-26T09:24:20.694380+02:00 router.home.arpa ppp 222 - - [wan] 192.168.100.1 is OK
<30>1 2024-08-26T09:24:20.694411+02:00 router.home.arpa ppp 222 - - [wan] IPCP: SendConfigAck #194
<30>1 2024-08-26T09:24:20.694444+02:00 router.home.arpa ppp 222 - - [wan] IPADDR 192.168.100.1
<30>1 2024-08-26T09:24:20.694504+02:00 router.home.arpa ppp 222 - - [wan] IPCP: state change Req-Sent --> Ack-Sent
<30>1 2024-08-26T09:24:20.694562+02:00 router.home.arpa ppp 222 - - [wan] IPCP: rec'd Configure Reject #1 (Ack-Sent)
<30>1 2024-08-26T09:24:20.694596+02:00 router.home.arpa ppp 222 - - [wan] COMPPROTO VJCOMP, 16 comp. channels, no comp-cid
<30>1 2024-08-26T09:24:20.694634+02:00 router.home.arpa ppp 222 - - [wan] IPCP: SendConfigReq #2
<30>1 2024-08-26T09:24:20.694668+02:00 router.home.arpa ppp 222 - - [wan] IPADDR 0.0.0.0
<30>1 2024-08-26T09:24:20.702067+02:00 router.home.arpa ppp 222 - - [wan] IPCP: rec'd Configure Nak #2 (Ack-Sent)
<30>1 2024-08-26T09:24:20.702109+02:00 router.home.arpa ppp 222 - - [wan] IPADDR xx.x.xxx.xxx
<30>1 2024-08-26T09:24:20.702143+02:00 router.home.arpa ppp 222 - - [wan] xx.x.xxx.xxx is OK
<30>1 2024-08-26T09:24:20.702179+02:00 router.home.arpa ppp 222 - - [wan] IPCP: SendConfigReq #3
<30>1 2024-08-26T09:24:20.702212+02:00 router.home.arpa ppp 222 - - [wan] IPADDR xx.x.xxx.xxx
<30>1 2024-08-26T09:24:20.818956+02:00 router.home.arpa ppp 222 - - [wan] IPCP: rec'd Configure Ack #3 (Ack-Sent)
<30>1 2024-08-26T09:24:20.819020+02:00 router.home.arpa ppp 222 - - [wan] IPADDR xx.x.xxx.xxx
<30>1 2024-08-26T09:24:20.819053+02:00 router.home.arpa ppp 222 - - [wan] IPCP: state change Ack-Sent --> Opened
<30>1 2024-08-26T09:24:20.819091+02:00 router.home.arpa ppp 222 - - [wan] IPCP: LayerUp
<30>1 2024-08-26T09:24:20.819127+02:00 router.home.arpa ppp 222 - - [wan] xx.x.xxx.xxx -> 192.168.100.1
<30>1 2024-08-26T09:24:20.937713+02:00 router.home.arpa ppp 222 - - [wan] IFACE: Up event
<30>1 2024-08-26T09:24:20.937771+02:00 router.home.arpa ppp 222 - - [wan] IFACE: Rename interface ng0 to pppoe0
<30>1 2024-08-26T09:24:20.937866+02:00 router.home.arpa ppp 222 - - [wan] IFACE: Add description "WAN"
<30>1 2024-08-26T14:02:45.426488+02:00 router.home.arpa ppp 3333 - - Multi-link PPP daemon for FreeBSD
Qualche idea a riguardo?
