Wireguard Mikrotik come peer

kalipotino

Ciao a tutti, è da un paio di giorni che sto smanettando per capire come configurare il mio Mikrotik RB5009 come peer tramite Wireguard con una macchina VPS Ubuntu che è configurata come server.
Ho già configurato la VPS con Wireguard correttamente seguendo una guida online ma ho dei problemi col mio Mikrotik in quanto non riesco a impostare correttamente le regole del firewall, NAT e Routing.

Quello che vorrei fare è inoltrare il traffico della mia rete verso la VPS in modo tale da accedere ad un tool di monitoraggio che ho installato senza dover utilizzare il reverse proxy. In passato sono riuscito a configurare correttamente la VPN come server sul mio mikrotik per accedere da remoto dai miei dispositivi. In questo caso però che deve fare da peer sbaglio qualcosa.

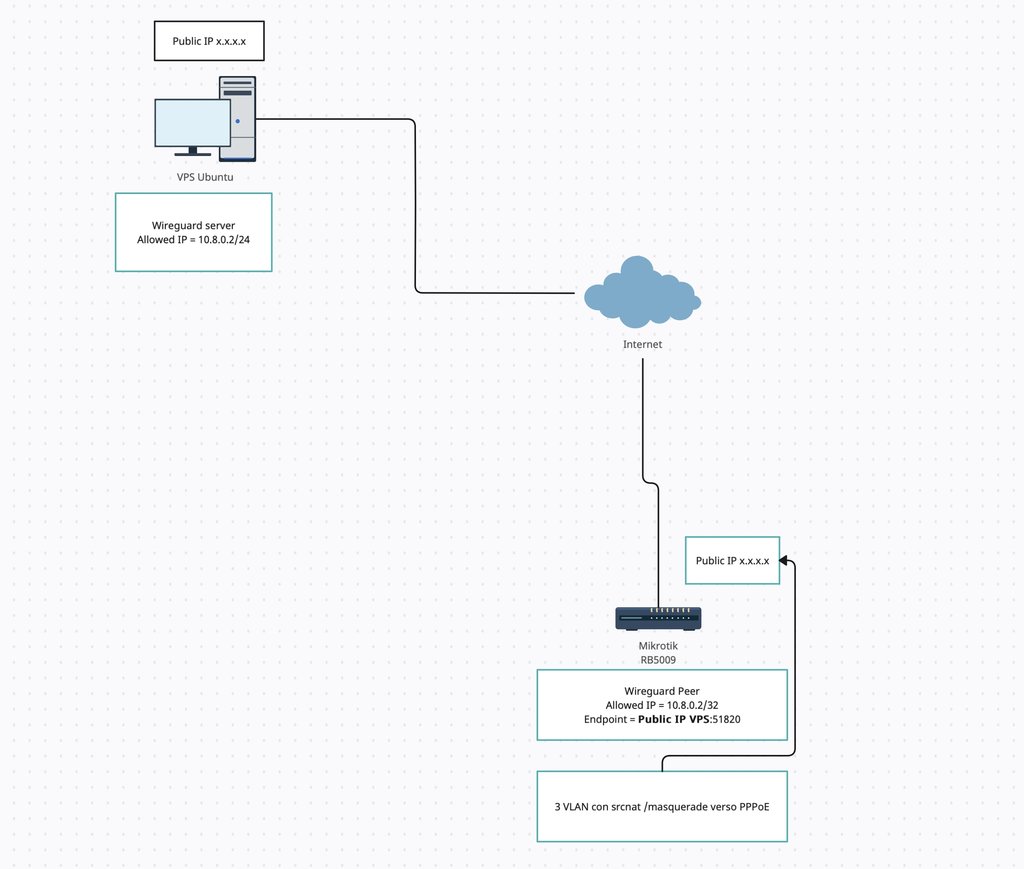

Qui di seguito vi allego uno schema di quello che vorrei fare giusto per avere un'idea più precisa e anche la mia configurazione attuale. Per configurare inizialmente il firewall ho letto proprio la wiki di Mikrotik appena ho comprato il router e ho seguito i loro suggerimenti.
Oltre che chiedere una mano, siccome sono interessato alla questione del networking mi piacerebbe capire il perché utilizzare certe regole così imparo qualcosa.

Grazie in anticipo!😀

/interface vlan add interface=ether1 name=VLAN_DIMENSIONE vlan-id=835 add interface=ether5 name=VLAN_Home vlan-id=30 add interface=ether5 name=VLAN_IoT vlan-id=10 add interface=ether5 name=VLAN_WIFI_GUEST vlan-id=20 /interface pppoe-client add add-default-route=yes dial-on-demand=yes disabled=no interface=VLAN_DIMENSIONE keepalive-timeout=disabled name=pppoe_dimensione user= /interface list add comment=defconf name=WAN add comment=defconf name=LAN /interface wireless security-profiles set [ find default=yes ] supplicant-identity=MikroTik /ip pool add name=default-dhcp ranges=192.168.88.10-192.168.88.254 add name=dhcp_pool1 ranges=192.168.10.2-192.168.10.254 add name=dhcp_pool2 ranges=192.168.20.2-192.168.20.254 add name=dhcp_pool3 ranges=192.168.10.2-192.168.10.254 add name=dhcp_pool4 ranges=192.168.20.2-192.168.20.254 add name=dhcp_pool5 ranges=192.168.10.2-192.168.10.254 add name=dhcp_pool6 ranges=10.0.20.2-10.0.20.254 add name=dhcp_pool7 ranges=10.0.10.10-10.0.10.100 add name=dhcp_pool8 ranges=10.0.30.2-10.0.30.254 /ip dhcp-server add address-pool=default-dhcp interface=bridge name=defconf add address-pool=dhcp_pool6 interface=VLAN_WIFI_GUEST name=DHCP_WIFI add address-pool=dhcp_pool7 interface=VLAN_IoT name=DHCP_IoT add address-pool=dhcp_pool8 interface=VLAN_Home name=DHCP_Home /snmp community set [ find default=yes ] addresses=0.0.0.0/0 /interface bridge port add bridge=bridge comment=defconf interface=ether2 add bridge=bridge comment=defconf interface=ether3 add bridge=bridge comment=defconf interface=ether4 add bridge=bridge comment=defconf interface=ether5 add bridge=bridge comment=defconf interface=ether6 add bridge=bridge comment=defconf interface=ether7 add bridge=bridge comment=defconf interface=ether8 add bridge=bridge comment=defconf interface=sfp-sfpplus1 /ip neighbor discovery-settings set discover-interface-list=LAN /interface list member add comment=defconf interface=bridge list=LAN add comment=defconf interface=VLAN_DIMENSIONE list=WAN /interface ovpn-server server set auth=sha1,md5 /ip address add address=192.168.88.1/24 comment=defconf interface=bridge network=192.168.88.0 add address=10.0.10.1/24 interface=VLAN_IoT network=10.0.10.0 add address=10.0.20.1/24 interface=VLAN_WIFI_GUEST network=10.0.20.0 add address=10.0.30.1/24 interface=VLAN_Home network=10.0.30.0 /ip cloud set ddns-enabled=yes ddns-update-interval=1m /ip cloud advanced set use-local-address=yes /ip dhcp-client add comment=defconf interface=VLAN_DIMENSIONE use-peer-dns=no /ip dhcp-server network add address=10.0.10.0/24 gateway=10.0.10.1 add address=10.0.20.0/24 gateway=10.0.20.1 add address=10.0.30.0/24 gateway=10.0.30.1 add address=192.168.88.0/24 comment=defconf gateway=192.168.88.1 /ip dns set allow-remote-requests=yes use-doh-server=https://dns.nextdns.io verify-doh-cert=yes /ip dns static add address=192.168.88.1 comment=defconf name=router.lan add address=45.90.28.0 name=dns.nextdns.io add address=45.90.30.0 name=dns.nextdns.io add address=2a07:a8c0:: name=dns.nextdns.io type=AAAA add address=2a07:a8c1:: name=dns.nextdns.io type=AAAA /ip firewall address-list add address=192.168.88.2-192.168.88.254 list=allowed_to_router add address=0.0.0.0/8 comment=RFC6890 list=not_in_internet add address=172.16.0.0/12 comment=RFC6890 list=not_in_internet add address=192.168.0.0/16 comment=RFC6890 list=not_in_internet add address=10.0.0.0/8 comment=RFC6890 list=not_in_internet add address=169.254.0.0/16 comment=RFC6890 list=not_in_internet add address=127.0.0.0/8 comment=RFC6890 list=not_in_internet add address=224.0.0.0/4 comment=Multicast list=not_in_internet add address=198.18.0.0/15 comment=RFC6890 list=not_in_internet add address=192.0.0.0/24 comment=RFC6890 list=not_in_internet add address=192.0.2.0/24 comment=RFC6890 list=not_in_internet add address=198.51.100.0/24 comment=RFC6890 list=not_in_internet add address=203.0.113.0/24 comment=RFC6890 list=not_in_internet add address=100.64.0.0/10 comment=RFC6890 list=not_in_internet add address=240.0.0.0/4 comment=RFC6890 list=not_in_internet add address=192.88.99.0/24 comment="6to4 relay Anycast [RFC 3068]" list=not_in_internet /ip firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1 add action=accept chain=input dst-port=53 in-interface=all-vlan protocol=tcp add action=accept chain=input dst-port=53 in-interface=all-vlan protocol=udp add action=drop chain=input comment="defconf: drop all not coming from LAN" in-interface-list=!LAN add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related hw-offload=yes add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN add action=accept chain=input comment="default configuration" connection-state=established,related add action=accept chain=input src-address-list=allowed_to_router add action=accept chain=input protocol=icmp add action=drop chain=input add action=fasttrack-connection chain=forward comment=FastTrack connection-state=established,related hw-offload=yes add action=accept chain=forward comment="Established, Related" connection-state=established,related add action=drop chain=forward comment="Drop invalid" connection-state=invalid log=yes log-prefix=invalid add action=drop chain=forward comment="Drop tries to reach not public addresses from LAN" dst-address-list=not_in_internet in-interface=bridge log=yes log-prefix=!public_from_LAN out-interface=\ !bridge add action=drop chain=forward comment="Drop incoming packets that are not NATted" connection-nat-state=!dstnat connection-state=new in-interface=ether1 log=yes log-prefix=!NAT add action=jump chain=forward comment="jump to ICMP filters" jump-target=icmp protocol=icmp add action=drop chain=forward comment="Drop incoming from internet which is not public IP" in-interface=ether1 log=yes log-prefix=!public src-address-list=not_in_internet add action=drop chain=forward comment="Drop packets from LAN that do not have LAN IP" in-interface=bridge log=yes log-prefix=LAN_!LAN src-address=!192.168.88.0/24 add action=accept chain=icmp comment="echo reply" icmp-options=0:0 protocol=icmp add action=accept chain=icmp comment="net unreachable" icmp-options=3:0 protocol=icmp add action=accept chain=icmp comment="host unreachable" icmp-options=3:1 protocol=icmp add action=accept chain=icmp comment="host unreachable fragmentation required" icmp-options=3:4 protocol=icmp add action=accept chain=icmp comment="allow echo request" icmp-options=8:0 protocol=icmp add action=accept chain=icmp comment="allow time exceed" icmp-options=11:0 protocol=icmp add action=accept chain=icmp comment="allow parameter bad" icmp-options=12:0 protocol=icmp add action=drop chain=icmp comment="deny all other types" add action=fasttrack-connection chain=forward connection-state=established,related hw-offload=yes add action=accept chain=forward connection-state=established,related add action=drop chain=input comment="Drop Port 53 UDP" connection-state="" dst-port=53 in-interface=pppoe_dimensione protocol=udp add action=drop chain=input comment="Drop Port 53 TCP" connection-state="" dst-port=53 in-interface=pppoe_dimensione protocol=tcp /ip firewall nat add action=masquerade chain=srcnat out-interface=pppoe_dimensione src-address=10.0.20.0/24 add action=masquerade chain=srcnat out-interface=pppoe_dimensione src-address=10.0.10.0/24 add action=masquerade chain=srcnat out-interface=pppoe_dimensione src-address=192.168.88.0/24 add action=masquerade chain=srcnat out-interface=pppoe_dimensione src-address=10.0.30.0/24 add action=redirect chain=dstnat dst-port=53 protocol=tcp add action=redirect chain=dstnat dst-port=53 protocol=udp /ip firewall service-port set ftp disabled=yes set tftp disabled=yes set h323 disabled=yes set sip disabled=yes set pptp disabled=yes /ip service set telnet disabled=yes set ftp disabled=yes set ssh disabled=yes set api disabled=yes set api-ssl disabled=yes /ipv6 address add address=. from-pool=IPv6_Dimensione interface=bridge /ipv6 dhcp-client add interface=pppoe_dimensione pool-name=IPv6_Dimensione request=prefix use-peer-dns=no /ipv6 firewall address-list add address=::/128 comment="defconf: unspecified address" list=bad_ipv6 add address=::1/128 comment="defconf: lo" list=bad_ipv6 add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6 add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6 add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6 add address=100::/64 comment="defconf: discard only " list=bad_ipv6 add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6 add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6 add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6 add address=fd12:672e:6f65:8899::/64 list=allowed add address=fe80::/16 list=allowed add address=ff02::/16 comment=multicast list=allowed /ipv6 firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6 add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/10 add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6 add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6 add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6 add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6 add action=accept chain=forward comment="defconf: accept HIP" protocol=139 add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN add action=accept chain=input comment="allow established and related" connection-state=established,related add action=accept chain=input comment="accept ICMPv6" protocol=icmpv6 add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp add action=accept chain=input comment="accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/16 add action=accept chain=input comment="allow allowed addresses" src-address-list=allowed add action=drop chain=input add action=accept chain=forward comment=established,related connection-state=established,related add action=drop chain=forward comment=invalid connection-state=invalid log=yes log-prefix=ipv6,invalid add action=drop chain=forward disabled=yes log-prefix=IPV6 /ipv6 nd set [ find default=yes ] interface=bridge /snmp set contact= location=Network trap-generators=start-trap trap-interfaces=all trap-version=3 /system clock set time-zone-name=Europe/Rome /tool mac-server set allowed-interface-list=LAN /tool mac-server mac-winbox set allowed-interface-list=LAN

kalipotino

Faccio un UP che magari qualcuno non ha visto il mio topic considerato l’orario in cui l’ho creato☺️
